YS504 Analog IR Simultaneous Interpretation System

A full system includes IR transmitter, IR radiator, interpreter console, IR receiver, charging case of IR receiver. IR transmitter, Interpreter console, IR receiver can choose 4/6/8/10/12 channels.

Overview

Product Description

The YS504M fits seamlessly in the chain which starts with congress Systems and continues through interpreters. With YS504M taking care of language distribution, you know that Interpretations will always arrive in perfect condition. This system is ideal for use in business and government conferences, international conventions and other multilingual applications, offering simultaneous interpretation and wireless audio distribution for up to 12 different languages plus the floor language using state-of-the-art infrared transmission technology. It complies with the lEC industry standards, operating in the higher frequency band to avoid lighting interference. The modular design of the Infra-Red Language Distribution System enables the required facilities to be specified in virtually any desired configuration, permitting a high degree of system flexibility.

Specifications

Product Features

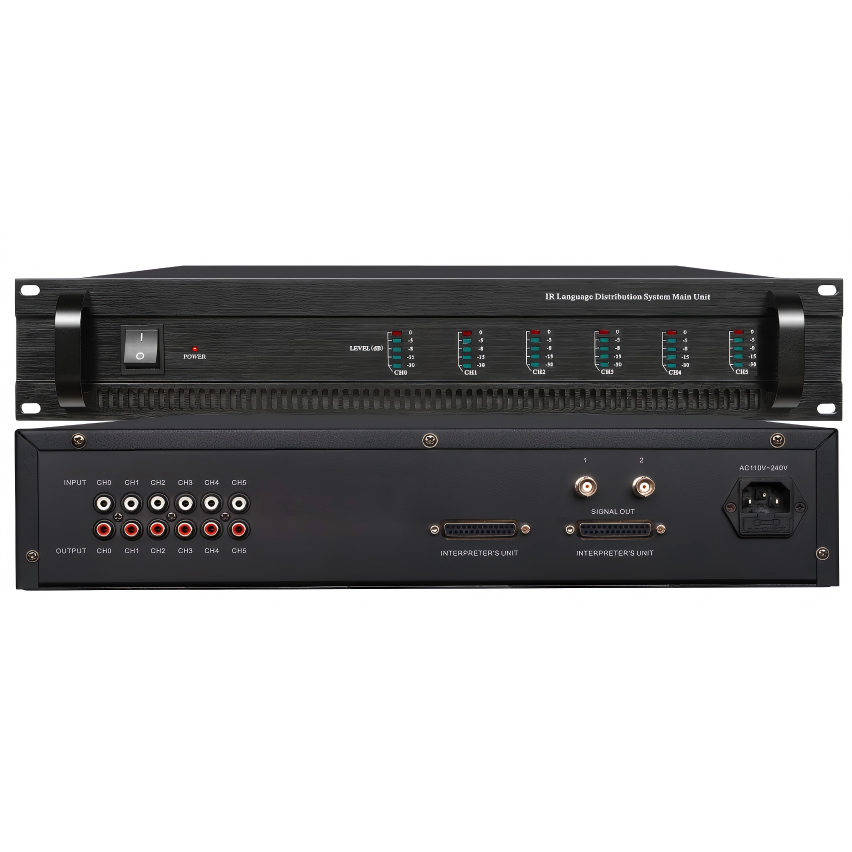

YS504M
Model name	Analog IR Transmitter
Modulation Mode	FM
Frequency Synthesis	Digital PLL
Frequency Band	1.7 - 4.0 MHz
Frequency Response	100 Hz - 14 kHz
Pre-emphasis	75 µSec
Distortion at 1 kHz	<0.5%
Channel Separation	>70 dB
RF Output Power Level	700 mV
RF Output Impedance	50 Ohm
Input Impedance	18k Ohm
Max. Input Power Level	2 V
AGC Range	30 dB
SNT	>75 dB
Power Consumption	40 W
Mounting	19” rack mounting
Color	Black

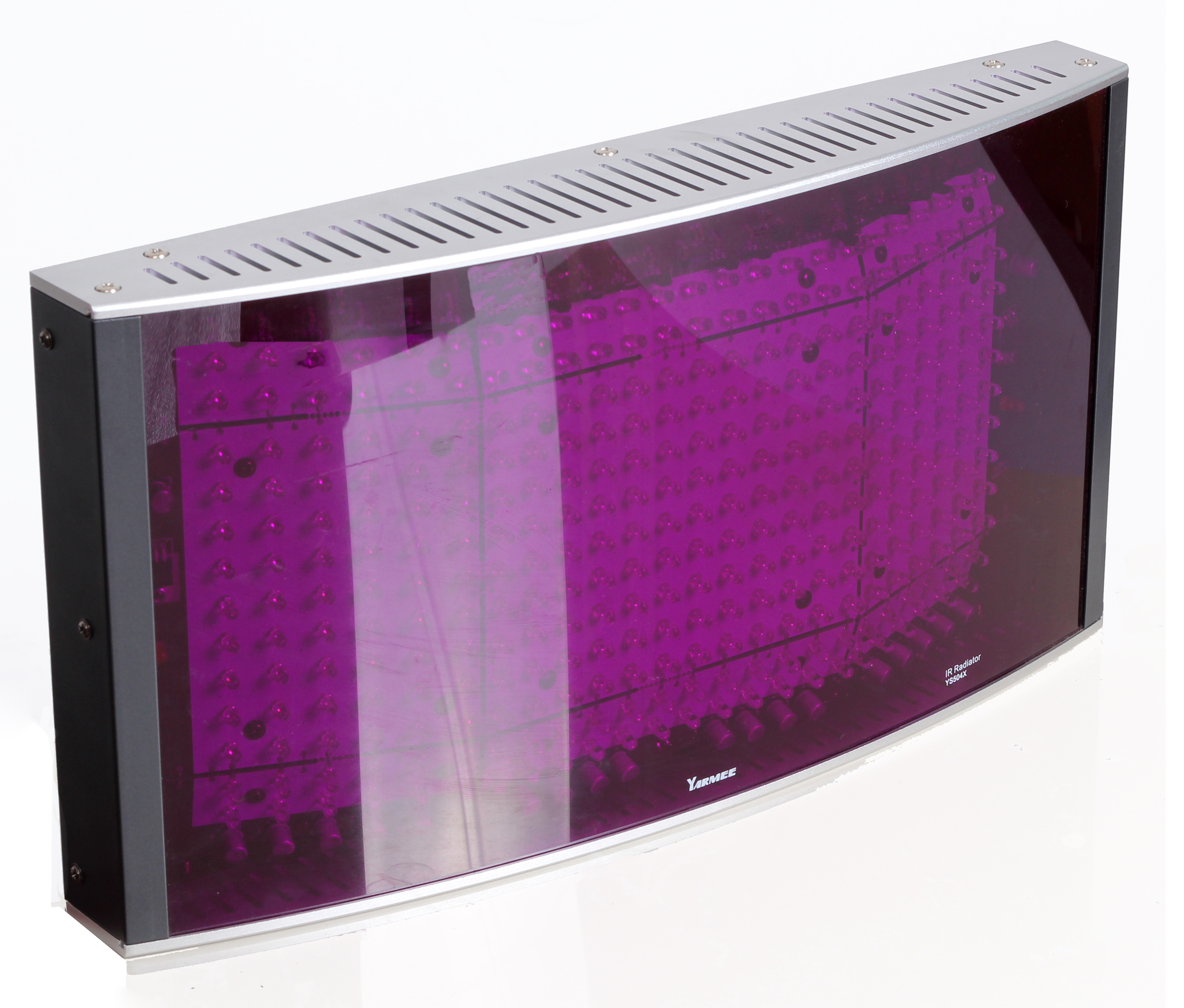

YS504X
Model name	Analog IR Radiator
Frequency Band	1.7 - 4.0 MHz
Half-transmitting angle	±22°
Max. IR Output Power	25 W
Max. Coverage Range	30 meter
Output Level Control Low / High	(50% / 100%)
RF Output Impedance	50 Ohm
RF Input Voltage	100 - 2000 mV
Power Consumption	Operating: 55 W; Standby: 8 W
Mounting Standard	bracket; Option: tripod

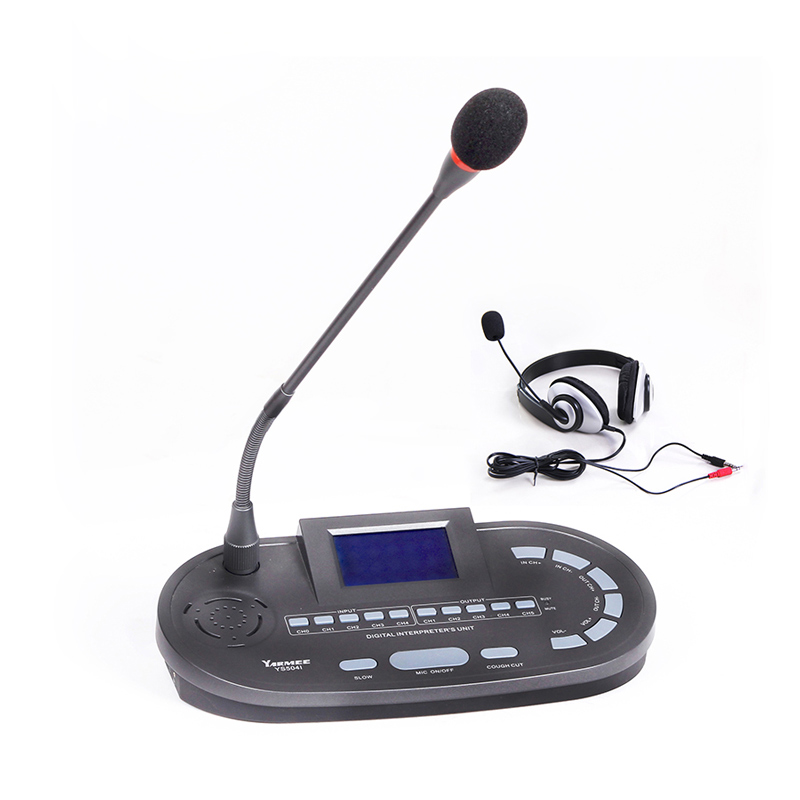

YS504I
Model name	Analog Interpreter Console
Function	SLOW; COUGH OUT
Interpreter Connector Interface	DB-25
Sensitivity	-42 ± 2 dB
Length of gooseneck	410 mm
Color	Black

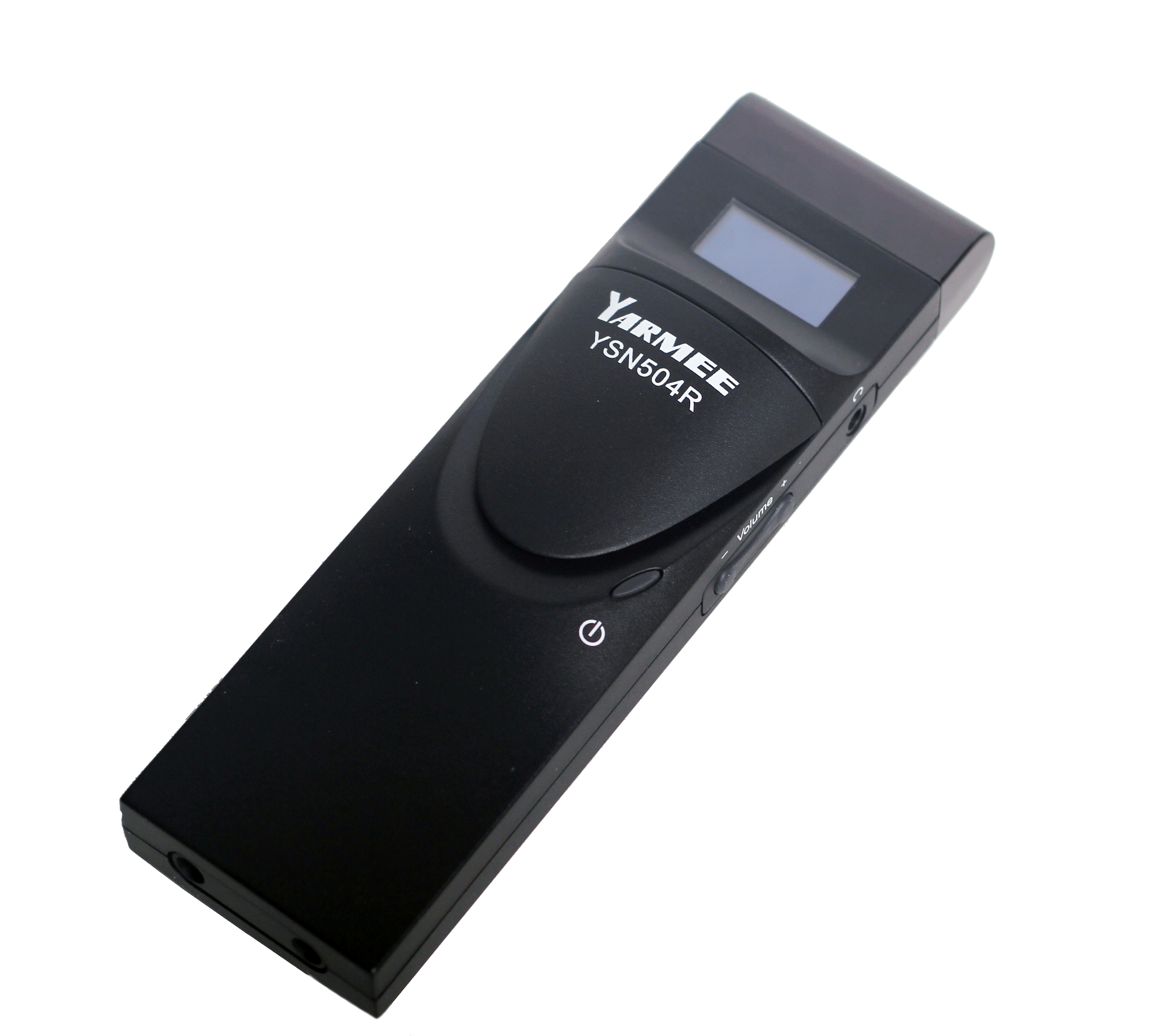

YSN504R
Model name	Analog IR Receiver
Modulation Mode	FM
Frequency Synthesis	Digital PLL
Carrier Frequency	1.7 - 4.0 MHz
Frequency Response	100 Hz to 14 kHz
Pre-emphasis	75 µSec
Distortion at 1 kHz	<1%
Channel Separation	>55 dBA
Frequency Stability	10 ppm
Operating Voltage	3.1 V - 5 V
Power Consumption	60 mW
Color	Black

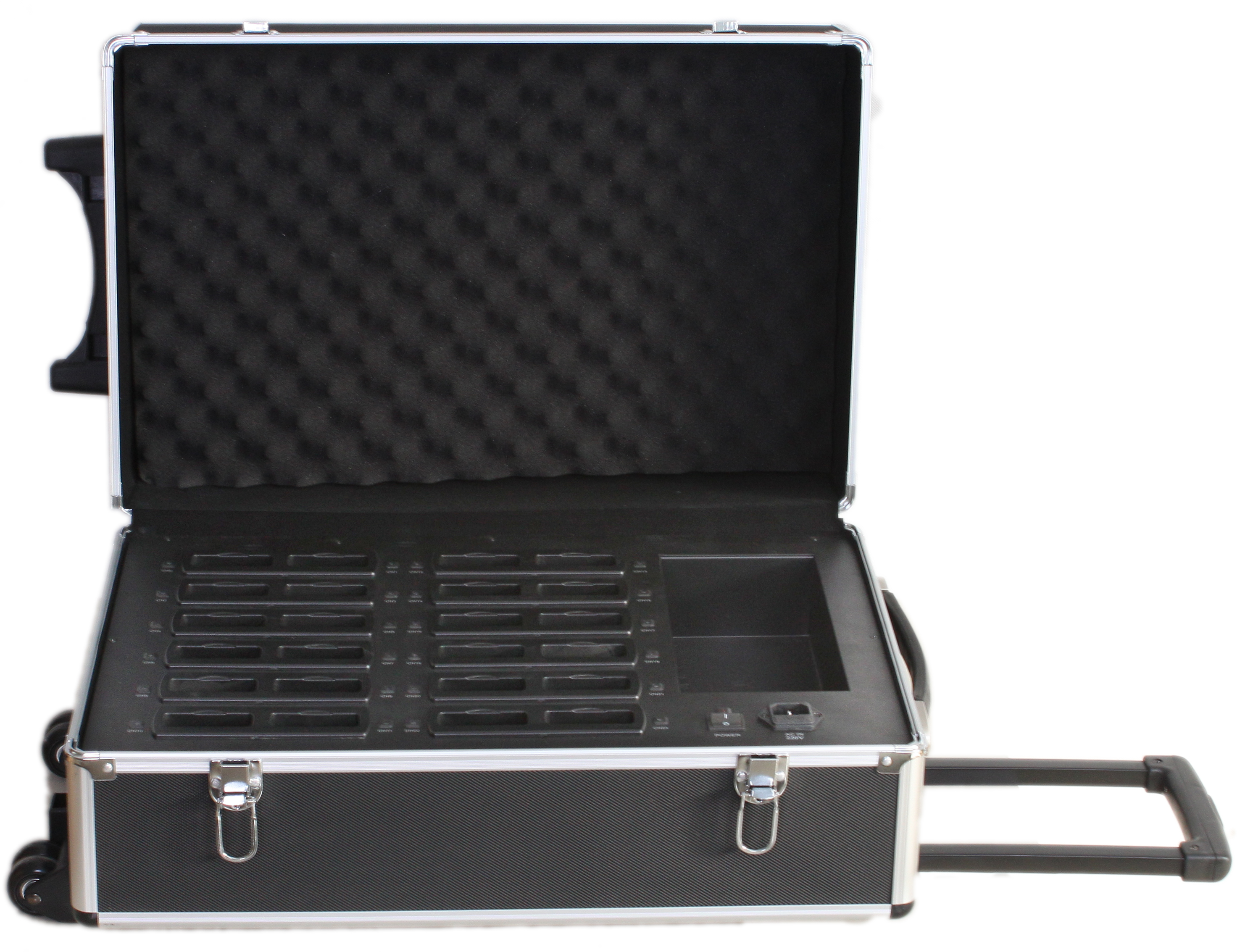

YSD504C
Model name	Charging Case for IR Receiver
Charging Quantity	24
