Tour Guide System
YT500 Wireless Tour Guide System
A full system includes: 2 transmitters with microphone + 40 receivers + a 42-slot charging case Quatity of each device is adjustable to your requirement.
Specifications
Product Features

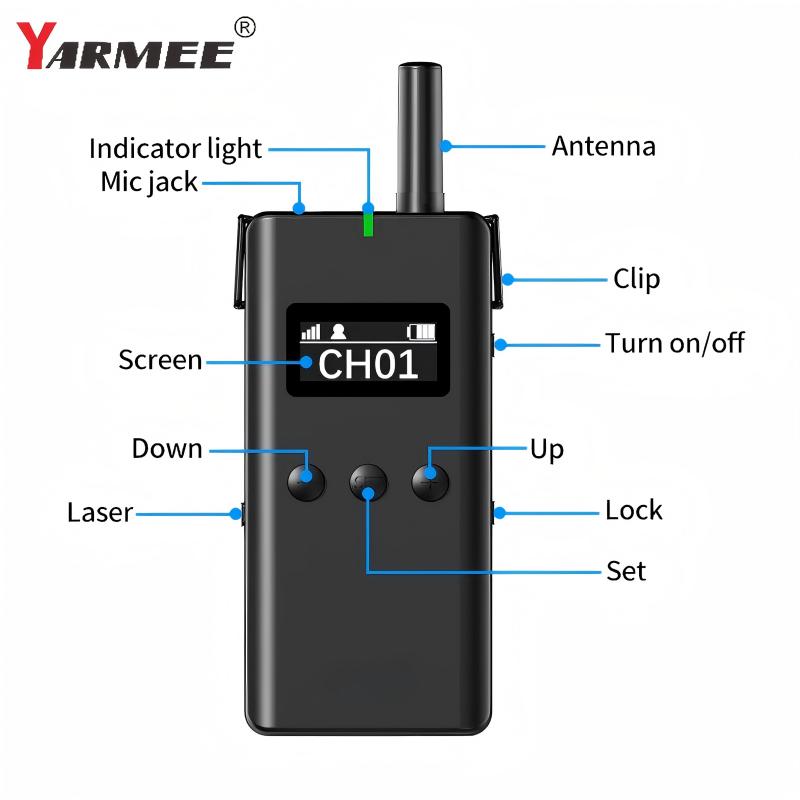

| YT500T | |
|---|---|
| Model name | transmitter |
| Frequency | 2.40 GHz ~ 2.485 GHz |
| Working channels | 100 |
| Sampling rate | DC 3.7V |
| Frequency response | 50 - 18KHz |
| Distortion | <0.2% |
| Transmit power | ≤20dBm |
| Transmit distance | ≤200 meters, opening area |
| SNR | ≥90dB |
| Working hours | <30 hours |
| Dimension | 50*110*20mm |
| Net weight | 110g |
| Accessory | microphone, lanyard |

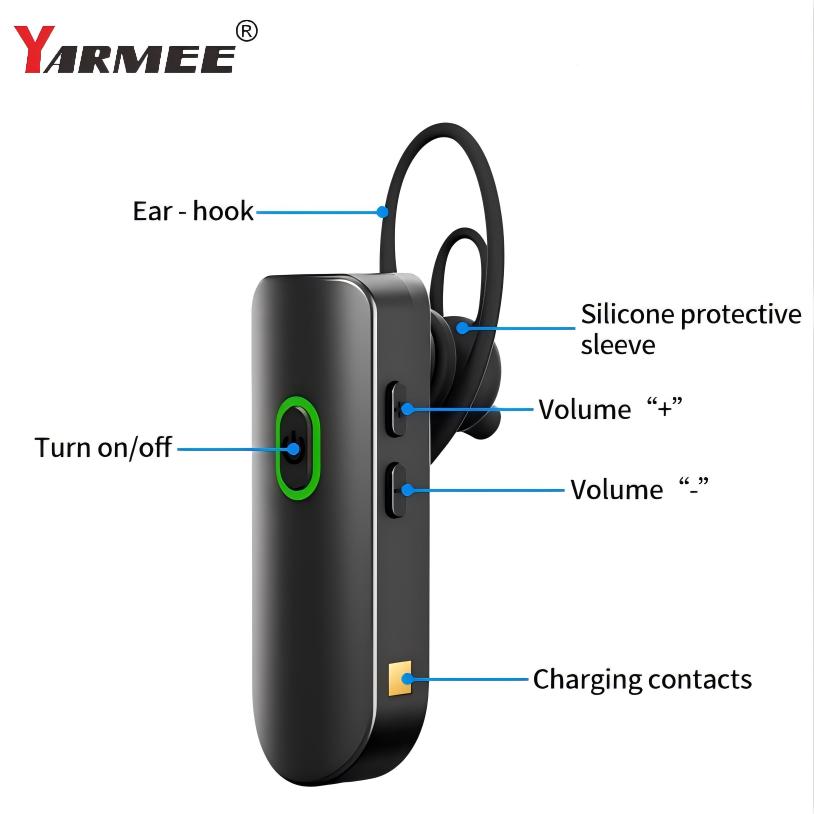

| YT500R | |
| Model name | receiver |
| Frequency | 2.40 GHz ~ 2.485 GHz |
| Working channels | 100 |
| Sampling rate | DC 3.7V |
| Frequency response | 50 - 18KHz |
| Working hours | <40 hours |
| Dimension | 523*65*13.5mm |
| Net weight | 22g |
| Accessory | ear-hook |

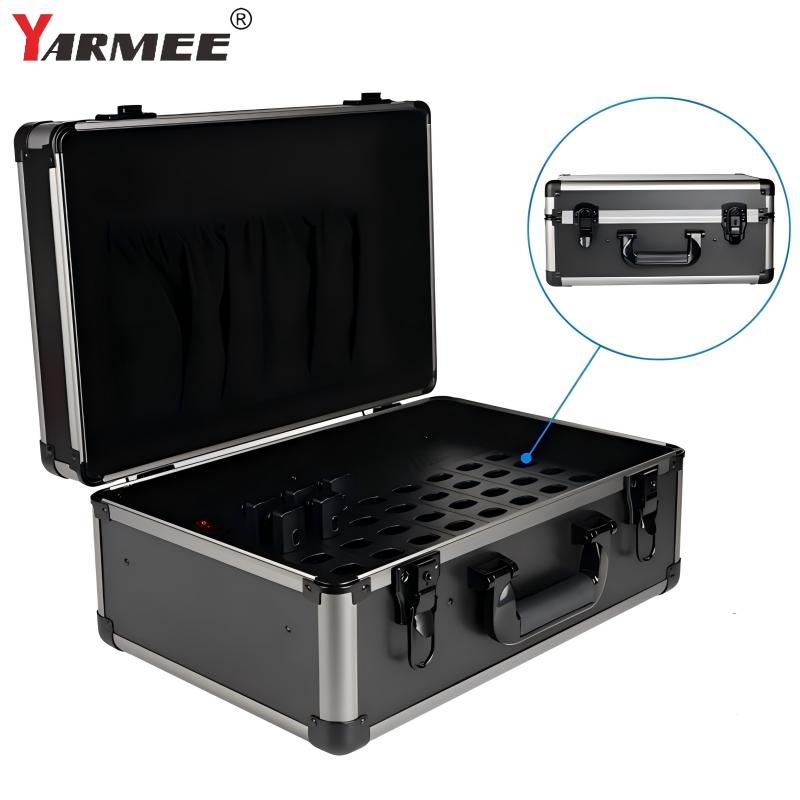

| YT542C | |
| Model name | charging case |
| Input | 110V - 240V, 50Hz/60Hz |
| Output | 5V |
| Slot position | 40 receivers + 2 transmitters |
| Size | 255*410*165cm |
| Function | charging & carrying |
| Charging time | 2~5 hours |
| System Functions: | |
| One key to shut down all the receivers | |
| One-click frequency pairing | |
| Support two guides speaking at the same channel | |
| Support bluetooth mode, and AUX-in | |
| One button to lock the screen | |
| Laser light assist | |
| Falling behind reminder | |
