Tour Guide System
YT510 Wireless Tour Guide System
A full system includes: 2 transmitters with microphone + 25 receivers + a 25-slot charging panel. Quatity of each device is adjustable to your requirement.
Specifications
Product Features

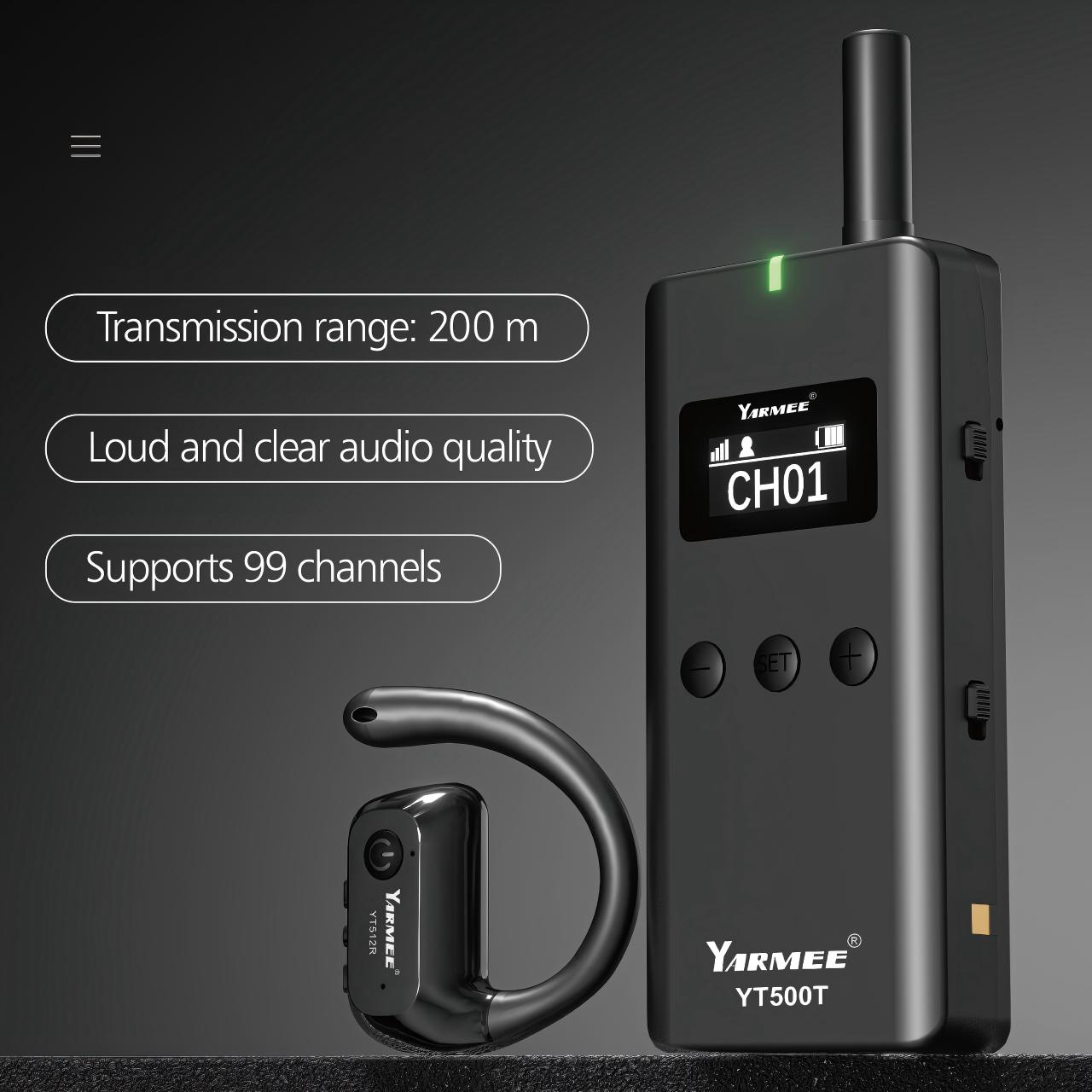

| YT500T | |
|---|---|
| Model name | transmitter |
| Frequency | 2.40 GHz ~ 2.485 GHz |
| Working channels | 100 |
| Sampling rate | DC 3.7V |
| Frequency response | 50 - 18KHz |
| Distortion | <0.2% |
| Transmit power | ≤20dBm |
| Transmit distance | ≤200 meters, opening area |
| SNR | ≥90dB |
| Working hours | <30 hours |
| Dimension | 50*110*20mm |
| Net weight | 110g |
| Accessory | microphone, lanyard |

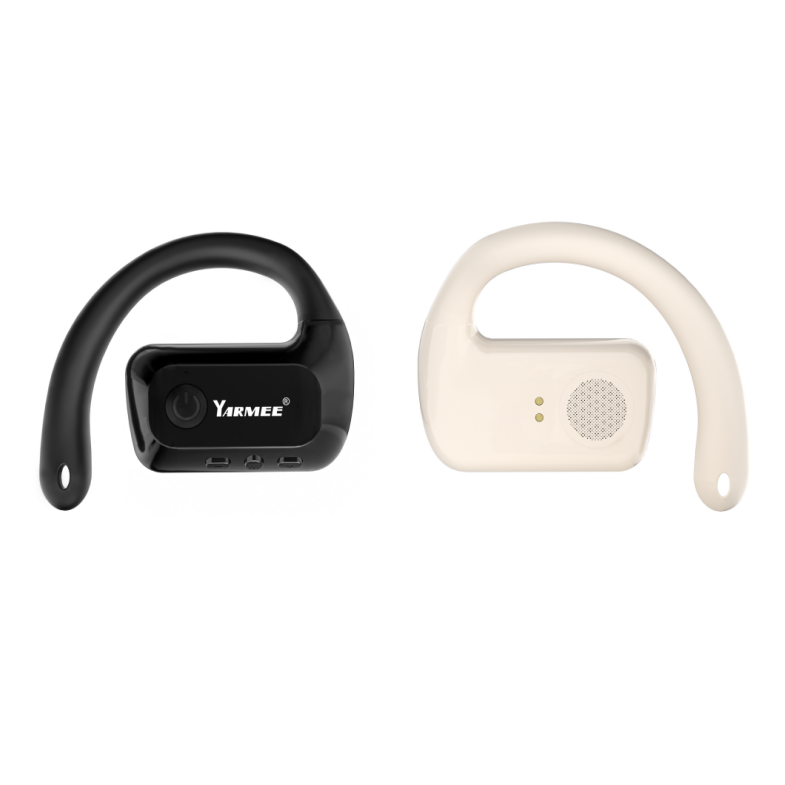

| YT511R / YT512R | |
| Model name | receiver |
| Frequency | 2.40 GHz ~ 2.485 GHz |
| Working channels | 100 |
| Sampling rate | DC 3.7V |
| Frequency response | 50 - 18KHz |
| Working hours | 8 - 9 hours |
| Dimension | 55*45*14.1 mm |
| Net weight | 14.5g |
| Accessory | lanyard |
| Color option | skin tone, or black |
| Charging Panel | |
| Model name | 25 slots charging panel |
| Input | 110V - 240V, 50Hz/60Hz |
| Output | 5V |
| Slot position | 25 receivers + 2 transmitters |
| Size | 34*26*7cm |
| Function | charging & carrying |
| Charging time | < 1 hour |
| System Functions: | |
| Fast full charging of the receivers | |
| Receiver can use bluetooth mode separately | |
| One group supports a main transmitter and a vice transmitter to work under the same channel | |
| Dual AUX IN | |
Product Gallery
Gallery
3 images
